CLASSIC 5

Professional Studio Monitor

Building on KRK’s legacy of sonic accuracy and performance, the new KRK CLASSIC 5 powered studio monitors incorporate over 30 years of innovation from the world’s leading studio monitor manufacturer. Borrowing concepts from previous ROKIT lines—some of the most used studio monitors in the world, the CLASSIC 5 defaults to a new flat frequency solution towards more critical listening—translating into more accurate mixes. With the optional ability to engage the +2 dB KRK Bass Boost, the CLASSIC 5 can also provide the enhanced bass response and sound that music creators around the world have loved for years.

The CLASSIC 5 is an active (self-powered) two-way studio monitor that utilizes a 1″ textile soft dome tweeter paired with a 5″ glass aramid woofer. The built-in power amplifiers provide a total of 50 watts of power, with a 30 watt amp driving the woofer, and a 20 watt amp for the tweeter.

Classic 5 Features

• 50 watt, 5″ active studio monitor / Self-powered. Amps matched to drivers; no external amp hassles
• Custom bi-amped, class A/B amplifiers / Provide high headroom and low distortion
• Heavy-duty enclosure / Durable
• Front-firing port / Allows placement flexibility (i.e. near walls) without interference from a rear-firing port
• Dedicated low and high frequency level adjustment controls / Allows you to optimize the monitor’s response to better match the room acoustics and the user’s personal preferences
• 5″ glass aramid composite woofer / Rigid and lightweight driver for optimal sound quality
• 1″ textile soft dome tweeter / Smooth high frequency response with excellent HF extension to 34.5 kHz
• Bass extension to 46 Hz / Excellent low frequency response for such a compact monitor
• Universal connectivity with XLR, 1/4″ TRS, and RCA inputs / Interfaces with just about any mixer and/or audio interface
• Volume control / Allows you to fine-tune your overall monitoring level
• System-optimized auto-limiter / Prevents unexpected peaks from damaging the speakers and provides consistency and clarity at high volumes
• Foam isolation pads on bottom / Protects the surface the monitors are sitting on and provides isolation for improved clarity
• 101 dB Max Peak SPL

Configuration	2-Way
System type	Active Studio Monitor
Low-Frequency Transducer	5″ Glass Aramid Woofer
High-Frequency Transducer	1″ Textile Soft Dome Tweeter
Frequency Response (+/- 3dB)	56Hz – 30kHz
Frequency Range (-10dB)	46Hz – 34.5kHz
Crossover Frequency	2.6kHz
Average Beamwidth (Horizontal)	133 Degrees (900 Hz — 9 kHz)
Average Beamwidth (Vertcal)	90 Degrees (900 Hz — 9 kHz)
Max Peak SPL (With Limiter)	101 dB
Max Average SPL (With Limiter)	98 dB
Max Calculated SPL	99 dB
Amplifiers	Class A-B
High Frequency Power Output (Watts)	20 Watts
Low Frequency Power Output (Watts)	30 Watts
Amplifier Distortion (THD+N)	< 0.1% THD+N 20 Hz — 20 kHz (-3 dB Max Power)
Input Impedance (Ohms)	10 KΩ Balanced / 7 KΩ Unbalanced
Input Sensitivity	0 dBu Balanced / -15 dBV Unbalanced
SNR (Signal to Noise Ratio)	> 94 dB

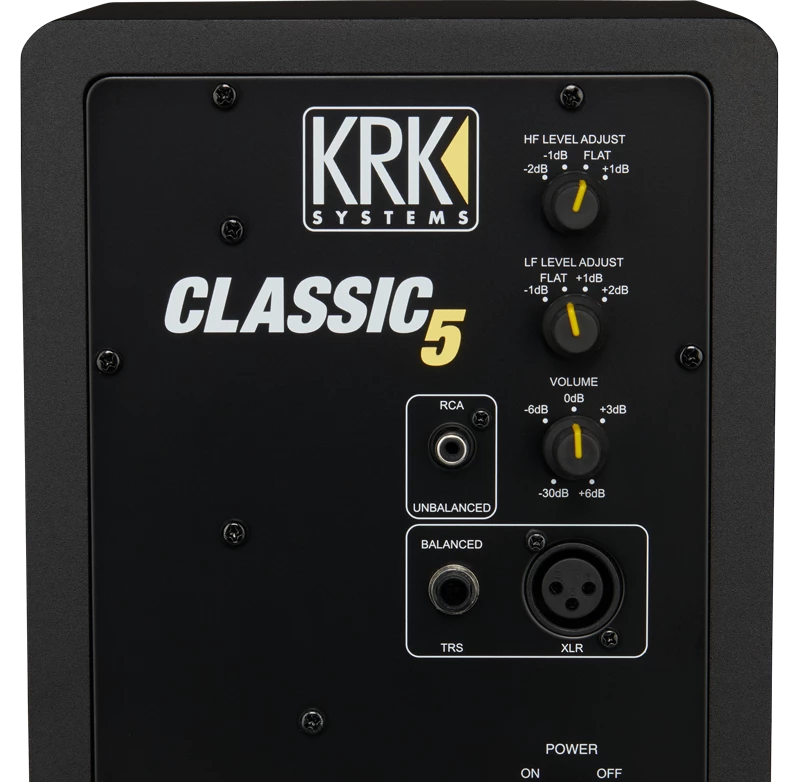

Controls	System Volume -30 dB – +6 dB
LF Level Adjust	(-1 dB, FLAT, +1 dB, +2 dB) Below 200 Hz
HF Level Adjust	(-2 dB, -1 dB, FLAT, +1 dB) Above 2.6 kHz
Indicators	Power

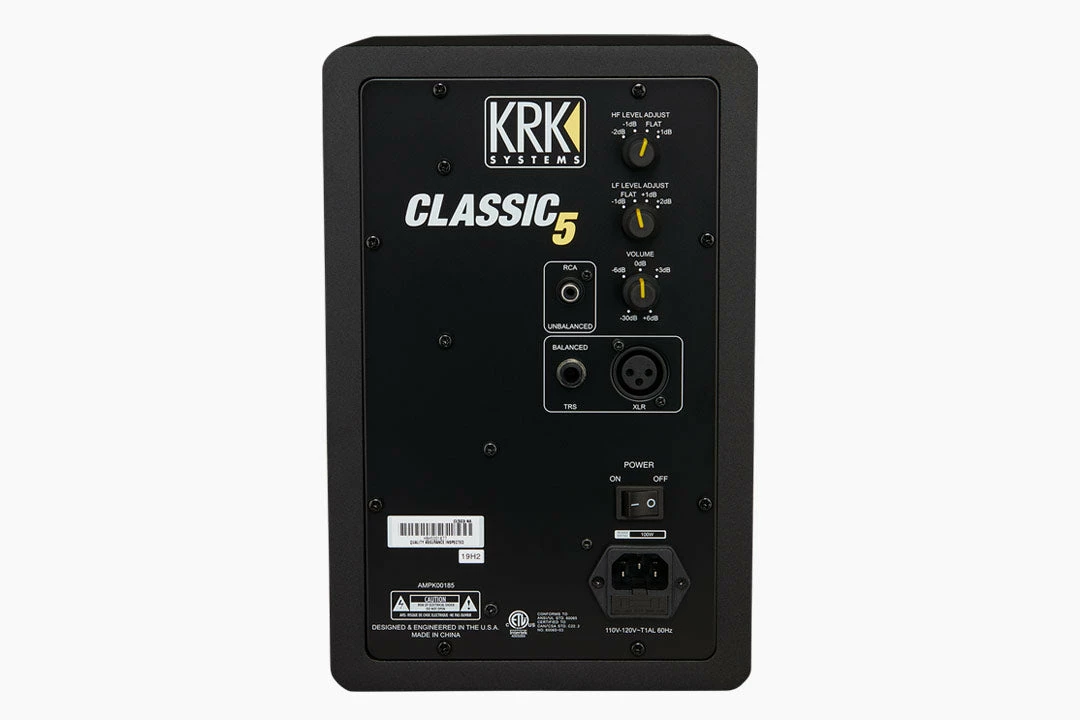

Input Connectors	RCA, Balanced 1/4″ TRS, Balanced XLR
Output Connectors	N/A
AC Fuse (Slow Blow / Time Lag)	120 VAC (T1AL, 250 V) 240 VAC (T500mAL, 250 V)
Idle (Mute) AC Power Consumption	14 Watts (NA SKU)
Idle (Standby) AC Power Consumption	< 0.5 Watts
Maximum AC Power Consumption	79 Watts (NA SKU)
Enclosure Construction	15 mm MDF / High Impact Polystyrene
Finish	Black Vinyl Wrap
Grille	N/A
Hardware	Foam Isolation Pads
Product Dimensions (H x W x D)	9.68″ (290 mm) x 7.40″ (226 mm) x 11.20″ (332 mm)
Product Weight	12.95 lb (5.87 kg)
